PRECAST CONCRETE BOUNDARY WALL AND U-DRAIN

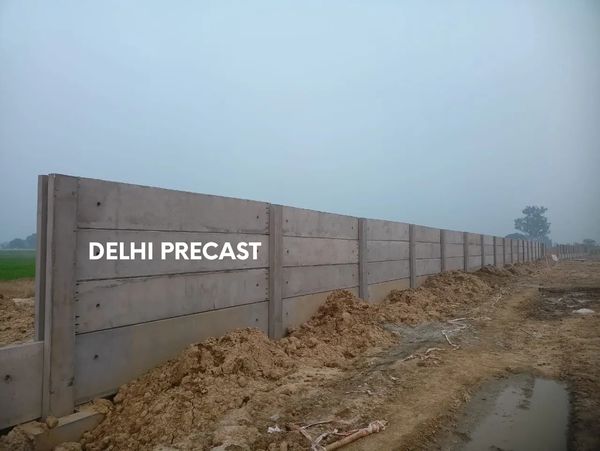

PRECAST BOUNDARY WALL : 50-70-80-100-125 MM
Delhi Precast offers durable and cost-effective precast boundary walls, designed for quick installation and long-lasting performance. These walls are made from high-quality prestressed concrete, ensuring excellent strength and durability. They are ideal for residential, commercial, and industrial applications, providing security and aesthetic appeal. With our advanced manufacturing techniques, the walls are customizable in size and design to meet specific project requirements including Airport's Wall & Warehouses Wall, offering both functionality, Strength, Security and elegance.
PRECAST U DRAIN T25 - U SHAPE DRAIN T6
At Delhi Precast , our precast U-drains are engineered for efficient water management in infrastructure projects. Made from high-strength concrete, these drains are designed to handle heavy loads and resist environmental wear. They provide a quick, reliable solution for drainage systems, ensuring optimal flow and reducing the risk of flooding. With easy installation and minimal maintenance, our precast U-drains are ideal for roads, highways, industrial complexes, and other infrastructure developments.
PRECAST CONCRETE BOX CULVERT AND PRECAST CABLE TRENCH
PRECAST BOX CULVERT
RCC PRECAST CABLE TRENCH
RCC PRECAST CABLE TRENCH
Delhi Precast manufactures precast box culverts, designed for efficient water flow management and underpasses. Made from durable, high-quality concrete, these culverts are ideal for stormwater drainage, sewage systems, and infrastructure projects. Their modular design ensures quick installation and reduces construction time, while offeri
Delhi Precast manufactures precast box culverts, designed for efficient water flow management and underpasses. Made from durable, high-quality concrete, these culverts are ideal for stormwater drainage, sewage systems, and infrastructure projects. Their modular design ensures quick installation and reduces construction time, while offering high load-bearing capacity to withstand heavy traffic. Precast box culverts provide a long-lasting, low-maintenance solution for both urban and rural projects, ensuring reliability and strength in all weather conditions.
RCC PRECAST CABLE TRENCH
RCC PRECAST CABLE TRENCH
RCC PRECAST CABLE TRENCH
At Delhi Precast , our precast cable trenches offer a secure and organized solution for housing electrical and communication cables. Constructed from high-quality concrete, these trenches provide superior protection against environmental hazards, physical damage, and wear. They are designed for quick installation and minimal maintenance,
At Delhi Precast , our precast cable trenches offer a secure and organized solution for housing electrical and communication cables. Constructed from high-quality concrete, these trenches provide superior protection against environmental hazards, physical damage, and wear. They are designed for quick installation and minimal maintenance, making them ideal for industrial plants, railways, and urban infrastructure projects. With customizable sizes and configurations, our precast cable trenches ensure efficient cable management and long-term durability.
PRECAST COMPOUND WALL - Precast Boundary Wall Gurgaon Noida Delhi
Technical Specification of Precast Boundary Wall Precast Compound Wall
PRECAST BOUNDARY WALL / PRECAST COMPOUND WALL
Pre-Cast Pre-Stressed Ready to install
Factory made Boundary Wall
- Available in following
4 , 5 , 6 , 7 , 8 , 9 , 10 , 11 , 12 , 14 feet HEIGHT
- We use M25 , M30 , M35 , M40 , M45 , M50 Design Mix Concrete.
- 4 MM HT PS Wire ( Reinforcement )
- 6 MM HT PS Wire ( Reinforcement )
- 7 MM HT PS Wire ( Reinforcement )
- Panel width 42/ 50 / 52 / 70 / 95 & 100 mm
- Panel Length 5 , 6 , 7 and 8 feet
- Column Thickness : 150 , 175 , 200 , 30 , 270 & 300 MM
Why Pre-Cast Boundary Wall....
- Low Cost ( comparison to brick/stone )
- Fast to Install
- Longer Life
- No Maintenance
- Weather proof
- RE-Usable
- Aesthetically attractive
Why we use Pre-stress Method ?
What is Pre stress Rcc products ?
The term "prestressed concrete" (also known as pre-tensioned concrete) means that wet concrete is poured onto steel strand which has been tensioned. After the concrete has reached the required strength the strand is de-tensioned, the cured concrete adheres and bonds to the strand and when the tension is released it is transferred to the concrete as compression by static friction. This gives the panels additional strength and enables them to flex under load without detriment.
We manufacture a wide range of prestressed concrete panels to suit a wide variety of applications., our concrete panels are used to form walls in warehouses and distribution center's, Farm houses , farming fields , industrial units, storage bunkers, bulk storage buildings, recycling facilities, retaining walls, water tanks, waste transfer stations, salt stores, fertilizer stores and all types of agricultural buildings.
Our concrete wall panels are manufactured at our factory . A plant was installed in 2014 which ensures that we have complete control over the quality of the material & concrete used. We Cast in molds of long length means that the length of the panels can be infinitely variable to suit our customer's requirements
Precast Boundary Wall : Farmhouse
Available Height : 4 to 10 Feet
Rates : 60 Rs to 110 Rs Sq Feet with Installation at your Site. Depending upon Quality you choose.
Delivery Period : Next day of Order
Precast Boundary Wall - Farmhouses
Precast Compound Wall - RealEstate & Industries
Available Height : 4 to 10 Feet
Rates : 70 Rs to 120 Rs Sq Feet with Installation at your Site. Depending upon Quality you choose.
Delivery Period : Next day of Order
manufacturer precast boundary wall precast concrete walls
TYPES OF PRECAST BOUNDARY WALL | TYPES OF PRECAST COLUMNS AND PANELS
Types of Precast Boundary Walls
Types Of Precast Columns
Types of Precast Panels
LOAD BEARING PRECAST PRE-STRESSED CONCRETE BOUNDARY WALL
15 FEET HEIGHT PRECAST WALL
One of its kind its 15 FEET Height above from NGL and can bear any wind pressure, Impact & soil load. #PrecastBoundaryWall
230 MM THICK COLUMN | 80 MM THICK PANEL
COLUMN SIZE : 6000 x 230 x 200 MM | PANEL SIZE : 2400 x 300 x 80 MM
PRE-STRESSED CONCRETE USED
All the Material is casted in Pre-Stressed Concrete with Minimum M35 | M40 Grade Concrete
